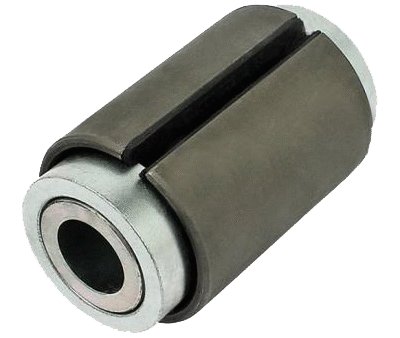

Stabilizer Suspension Slotted Bushing Suitable For MAN Truck (OE 81.96210.0618) | BJ Code: 004.03.0366
Product Specifications:
- Component Type: Suspension Bushing / Slotted Silent Block / Stabiliser Link Bushing
- Inner Diameter (d): 18 mm
- Outer Diameter (D): 47 mm to 48 mm
- Total Width/Height (H): 40 mm to 47 mm(Nominal alignment profile)
- Net Weight: 0.290 kg to 0.305 kg (~0.65 lbs)
- Material Composition: Heat-treated, wear-resistant rubber compound securely bonded to a high-grade seamless inner steel tube
Cross-Reference Compatibility Chart:
- MAN Original Equipment: 81.96210.0618 / 81962100618
- MAN Alternate Formatting: 81.96210-0618 / 81-96210-0618
- BJ Spring Code: 004.03.0366
- Target Vehicle Fitments: MAN TGA, TGS, TGX Heavy Duty Commercial Trucks
- Febi Bilstein Interchange: 105943/ FE105943
- Auger Interchange: 74770 / AUG
- Sampa Interchange: 022.191
Description
Description
Product Overview:
This heavy-duty Leaf Spring Bushing is SUITABLE FOR MAN truck leaf spring eyes, shackle assemblies, stabiliser links, and trailing arm brackets (which are also manufactured and supplied by BJ Spring Limited). This premium suspension solution keeps your commercial trucks and transport fleets perfectly aligned while fully protecting them from harsh road vibrations.
This heavy-duty Leaf Spring Bushing is SUITABLE FOR MAN truck leaf spring eyes, shackle assemblies, stabiliser links, and trailing arm brackets (which are also manufactured and supplied by BJ Spring Limited). This premium suspension solution keeps your commercial trucks and transport fleets perfectly aligned while fully protecting them from harsh road vibrations.
Engineered to strict performance standards and supplied globally under Item Code 004.03.0366, this premium slotted stabiliser suspension bushing restores tracking stability, eliminates anti-roll bar or track control arm play, and maintains factory-level handling safety under heavy payload conditions. Built with high-strength rubber-to-metal vulcanisation, it limits unwanted axle shifting and reduces structural chassis noise on long, punishing commercial logistics, freight, and transit routes.
Key Technical Advantages:
- Tailored for Modern Heavy Trucks: Flawlessly supports the high load dynamics, extreme torsional force, and intense stress cycles specific to MAN TGA, TGS, and TGX commercial fleet platforms.
- Advanced Slotted Architecture: The specialised slotted design accommodates multi-axial deflection, distributing load impacts evenly across the inner sleeve to prevent premature fatigue.
- Heavy-Duty Vibration Isolation: The high-tensile natural rubber elastomer compound effectively dampens severe vertical stress, preventing premature anti-roll or trailing arm assembly wear.
